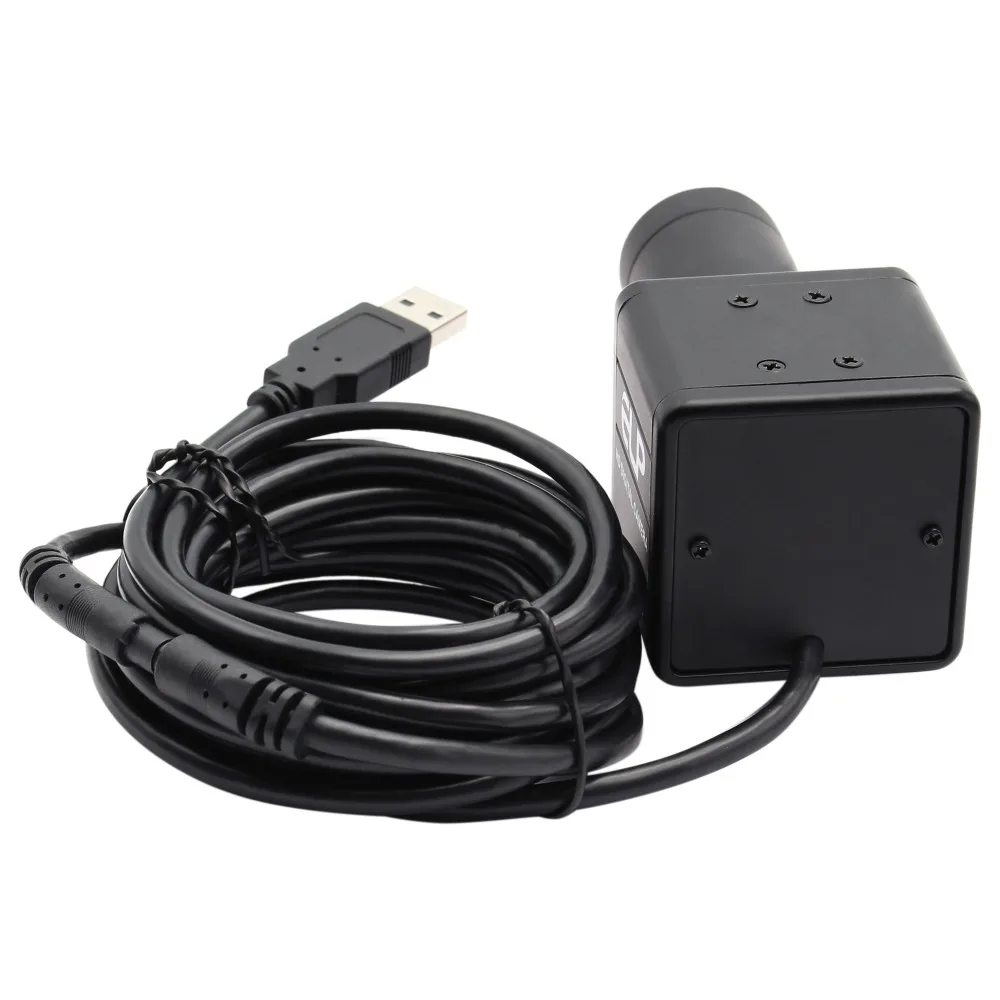

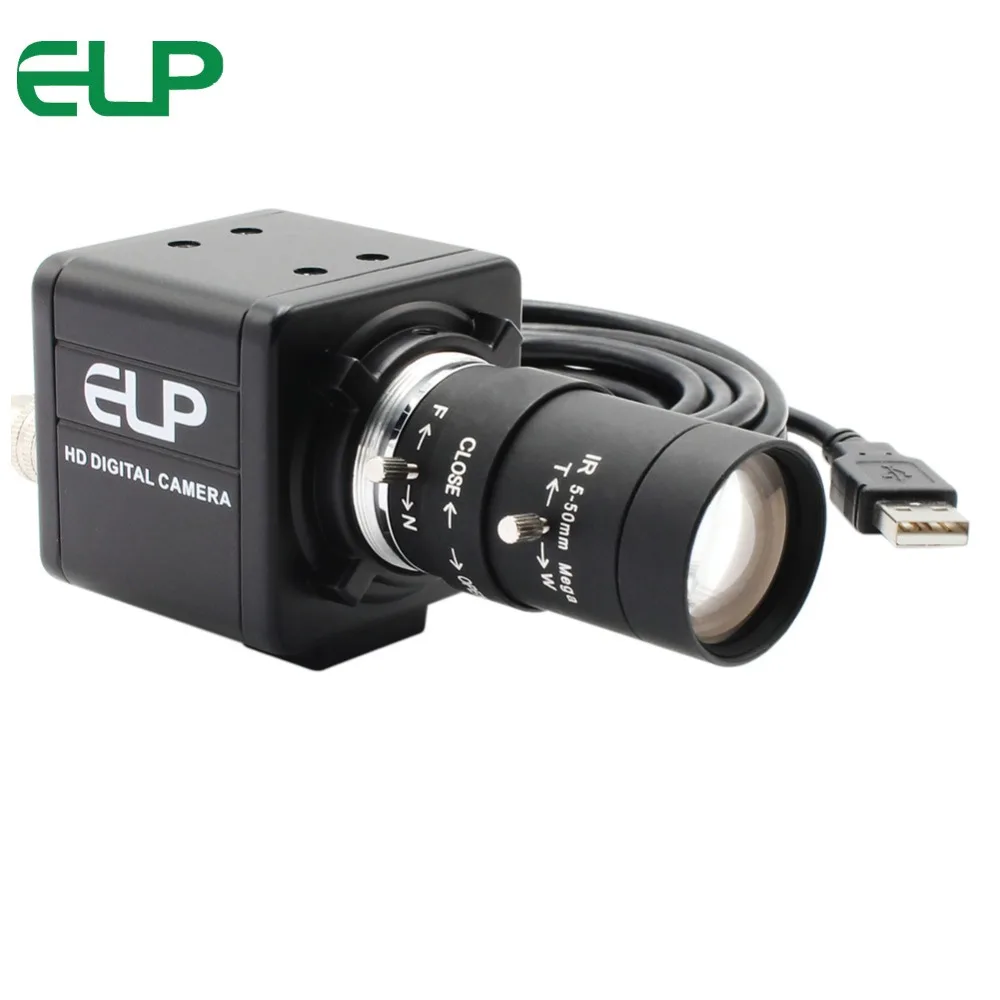

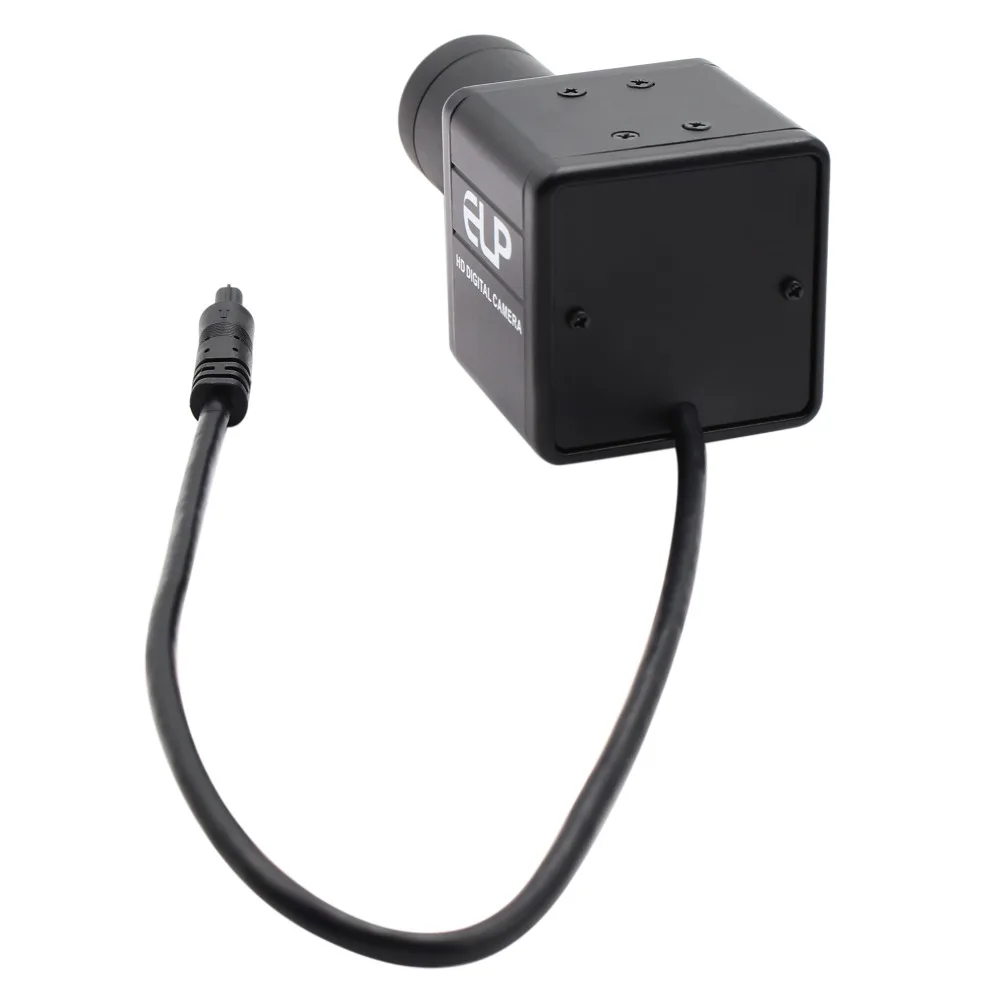

Name: 1.3MP 960P low illumination USB Webcam Camera Aptina AR0130 CMOS Shell Box Surveillance Camera with 5-50mm Varifocal Lens
SKU: 2141005008165636326
Availability: InStock

Webcams

1.3MP 960P low illumination USB Webcam Camera Aptina AR0130 CMOS Shell Box Surveillance Camera with 5-50mm Varifocal Lens

inc. VAT

Product Code:

2141005008165636326

Hign-concerned Chemical: None
Auto Focus: No
Package: Yes
Interface Type: USB
Image Sensor: CMOS
Pixels: ≤ 1 Mega
Max. Resolution: 1280×960
Brand Name: ELP
Origin: Mainland China
Certification: CE,FCC
MAX.resolution: 1280 x 960
CMOS Sensor: AR0130 (1/3″ )
interface: USB 2.0 High Speed
Output Formats: YUYV / MJPEG
Operating system request: Win XPWin7Win8AndroidLinuxMac OS
Manual Focus: 5-50mm megapixel varifocal lens
protocol: UVC (USB Video Class)
USB Cable: 3M (2M/5M Optional)
case: aluminum mini case

1.3MP 960P low illumination USB Webcam Camera Aptina AR0130 CMOS Shell Box Surveillance Camera with 5-50mm Varifocal Lens

Package include:

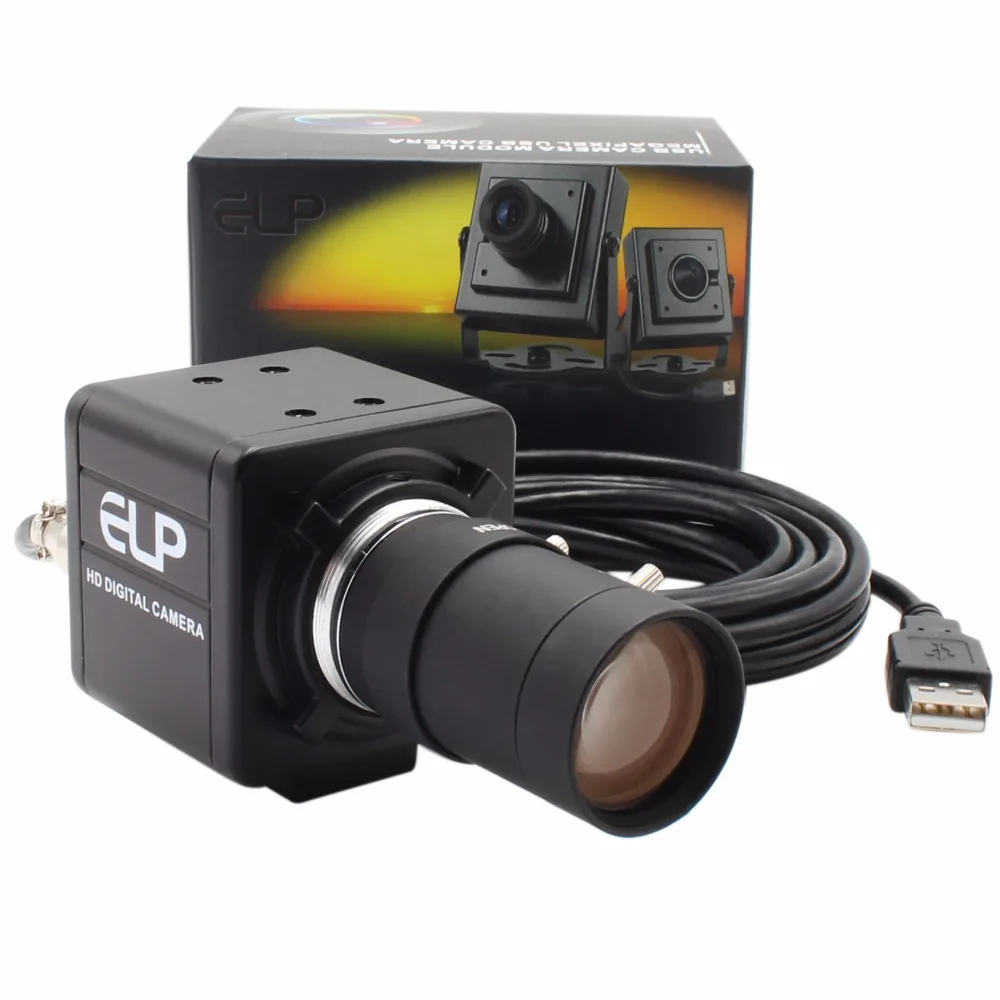

1) 1PC 1.3mp usb camera with 5-50mm manual varifocal CS lens

2) 1PC 3m usb cable ( 2m/5m cable optional)

*1280×960 resolution USB Camera
*1/3 Aptina AR0130 COMS sensor
*Suport YUY and MJPEG format
*high pixel technology for sharp image and accurate color reproduction
*low light performance –working perfect both in light condition and low light condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 60 fps in VGA

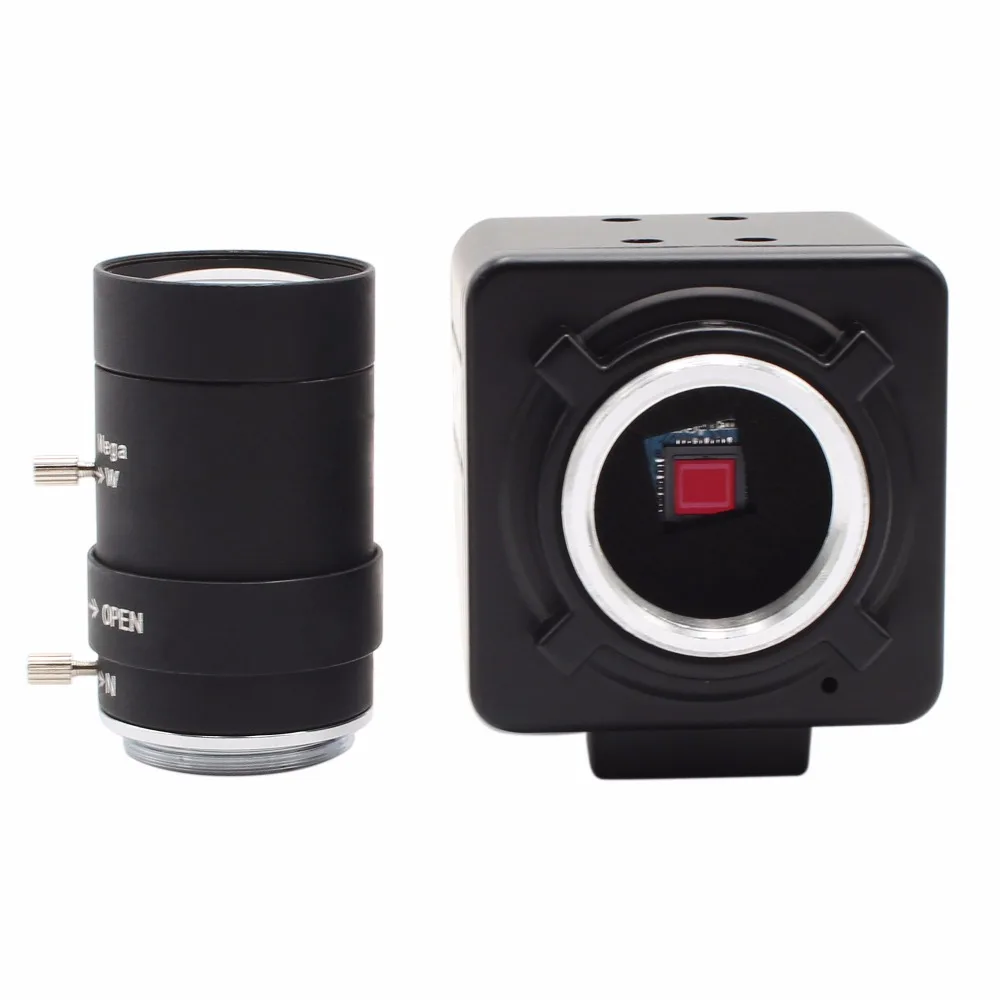

*High quality lens, 5-50mm manual varifocal CS lens

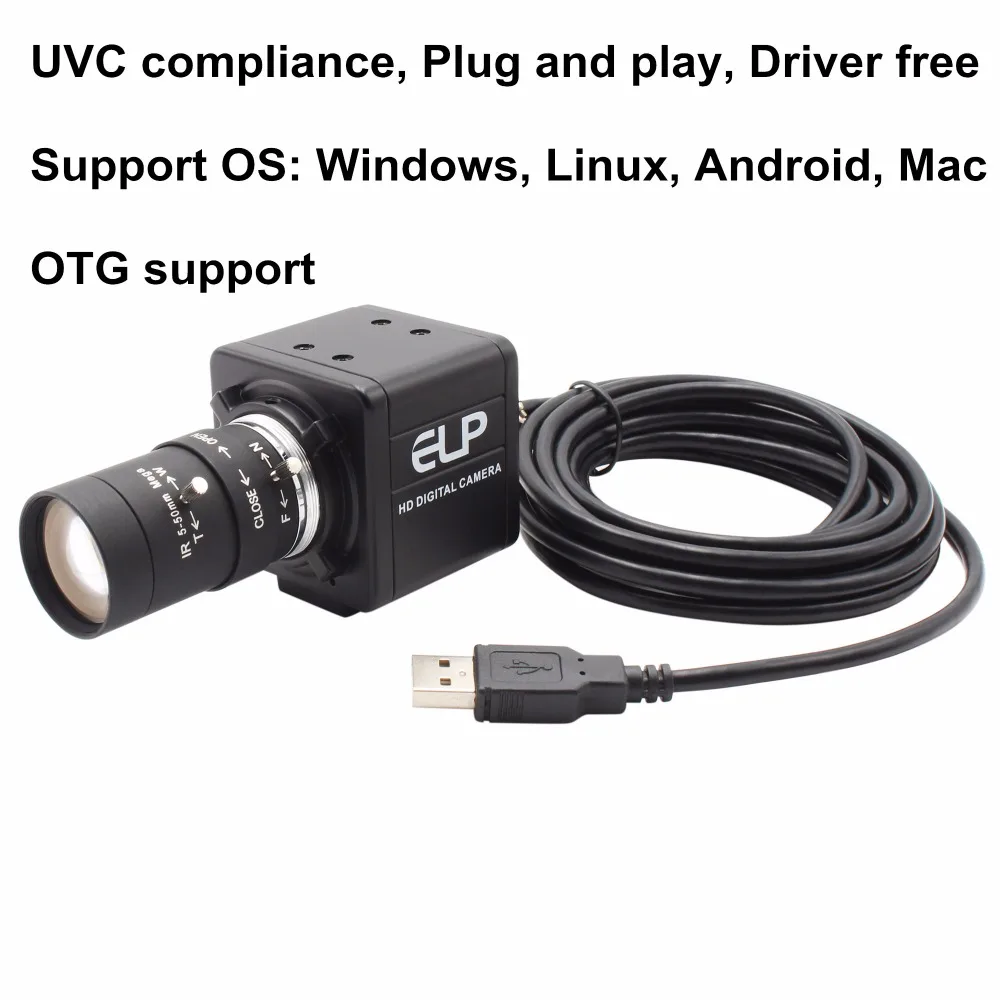

*WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

Module No.	ELP-USB130W01MT
Module Size	38mm × 38mm 32mm × 32mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 60°C
Camera Board Assembly technique	SMT (ROSH)
Focus	Manual
Object distance	5CM-100M
Resolution	600LW/PH (Center)
interface	USB 2.0 High Speed
protocol	USB Video Class UVC
Power	USB bus power
Operating system request	Win XPWin7Win8AndroidLinuxMac OS
Certifications	FCC and CE
Sensor Type	AR0130 (1/3” )
Active Array Size	1280 *960
Minimal illumination	0.01Lux
Pixel Size	3.75um

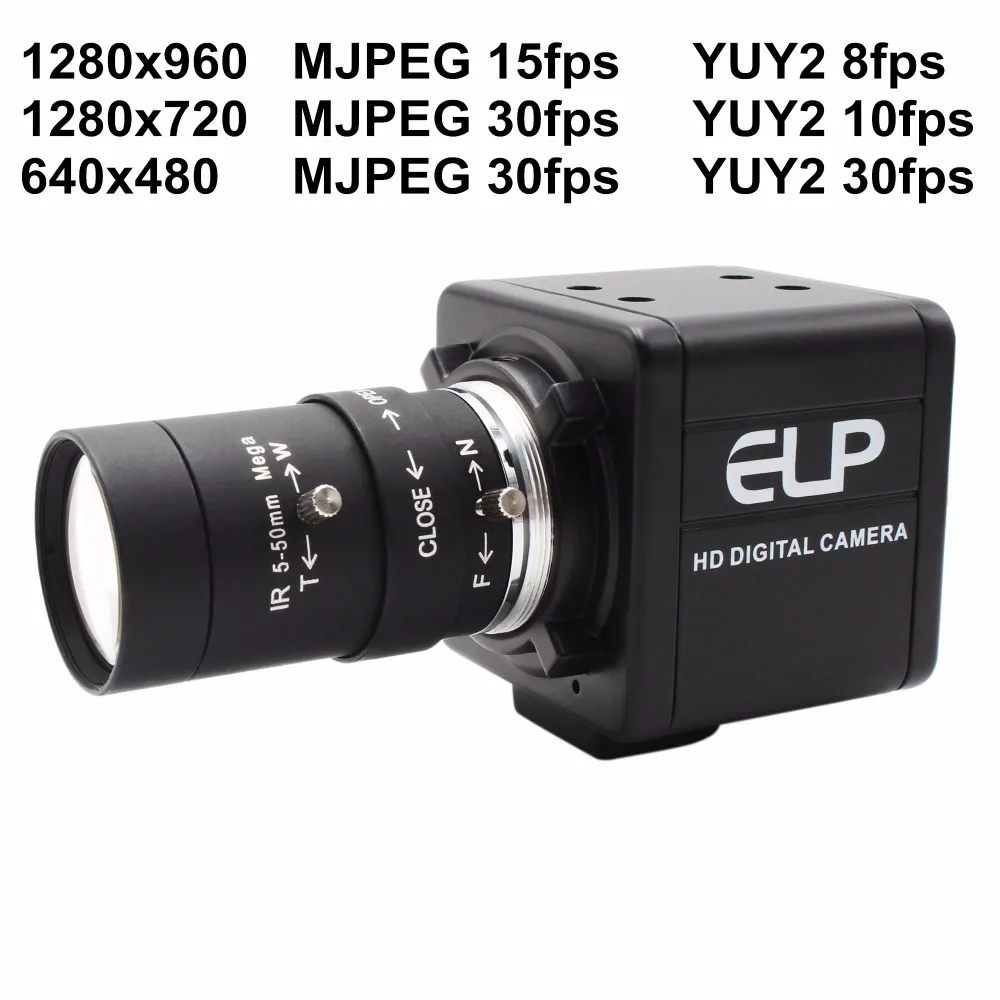

Maximum Image Transfer Rate	1280 (H) x 960 (V) pixels MJPEG 15fps 1280 (H) x 720 (V) pixels MJPEG 30fps 800 (H) x 600 (V) pixels MJPEG 30fps 640 (H) x 480 (V) pixels MJPEG 30fps 320 (H) x 240 (V) pixels MJPEG 30fps
S/N Ratio	44dB
Dynamic Range	83.5dB
Shutter	Rolling shutter/ frame exposure
Lens Type
Lens Construction	5G+IR
Focal Length	3.6mm (2.1mm/2.8mm/6mm/8mm/12mm Optional)
F/No	1.8
BFL(Optical)	6.5mm
FOV	105°
IR Filter	650±10nm
DSP Type	RV1080P
AGC/AEC/AWB/ABF	Auto
Output Formats	YUYV/MJPEG
IR CUT	SUPPORT
Adjustable parameters	Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus
Package	LQFN-40pin
USB Cable	1M(2M/3M/5M Optional)

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental
monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro
HD surveillance, endoscope, Medical auxiliary equipment, etc.
