1080P Webcam CS Zoom lens CMOS OV2710 60fps 720P Machine Vision USB Camera for Traffic and Transport ,Medical Technology
Price range: £58.79 through £61.79 inc. VAT
Description
- Hign-concerned Chemical: None
- Auto Focus: No
- Package: Yes
- Interface Type: USB
- Image Sensor: CMOS
- Pixels: 2 Mega
- Max. Resolution: 1920×1080
- Brand Name: ELP
- Origin: Mainland China
- Certification: CE,FCC
- Max.resolution: 1920 x 1080
- Sensor: 1/2.7 CMOS OV2710
- Interface: USB2.0
- High Speed USB2.0: 120fps in 640×480, 60fps in 1280X720 ,30fps in 1920 x 1080
- Driver: Free driver
- lens: 5-50mm megapixel varifocal lens
- Operation system: Linux , Android, Windows , Mac OS, SP2,
- cable: 3m (2/5m optional)
- Video format: MJPEG or YUY2
1080P Webcam CS Zoom lens CMOS OV2710 High fps Machine Vision USB Camera for Traffic and Transport (ITS),Medical Technology
Ailipu Technology Co.,Ltd,who have 19 years history, is a professional manufacturer of surveillance system .
Ailipu has its own brand ELP, which already well know in security surveillance system. With its own unique R&D team as the basic, oriented by dedicated sales team,
ELPalready developed into a prefessional video products company integrate with developing, production, sales and also service all together.
ELPis developing its own special USB Cameras for industrial vision. Recently, we present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel, 5megapixel autofocus, 8megapixel to 13megapixel which already used in all kinds of industrial system.
ELPcan also OEM or customize products specially by customers’ requirements. We always believe”Together everybody achives more!”, and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
Package include:
1) 1PC 2mp usb camera with 2.8-12/5-50mm manual varifocal CS lens
2) 1PC 3m usb cable ( 2m/5m cable optional)
1)High-quality USB camera adopted CMOS OV2710 image sensor with max resolution 1920×1080 for great picture performance, keep the purity and clarity of images. High frame rate: 1080P@30fps, Compression format: MJPG / YUY2; Saturation, Contrast, White balance adjustable
2)High quality HD 2.8-12mm and 5-50mm Manual varifocal CS Mount lens ,4/6/8mm manual focus CS lens,manually adjustable focal length provides you with an ultra-clear image detail to reflect a more realistic environment.
3)High frame rate– deliver 120fps in 640X480 resolution, 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
4)Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
5)Applications: this tiny camera board can be installed in narrow position for a home surveillance system, monitoring 3D Printer, object recognition and tracking or other machine vision application.
Cable: 3m USB cable (2M/3M/5M optional)
|
Model |
ELP-USBFHD01M-SFV(5-50) |
|
Optional Models |
ELP-USBFHD01M-SFV(2.8-12mm) |
|
Sensor |
OV2710 |
|
Lens Size |
1/2.7 inches |
|
Pixel Size |
3.0um X 3.0um |
|
Image Area |
5856 µm x 3276 µm |
|
Max. Resolution |
FULL HD 1920(H)X1080(V) |
|
Compression Format |
MJPEG / YUV2（YUYV） |
|
Resolution & Frame rate |
320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps |
|
Special Function |
Lens correction/ Defective pixel correction/ Black sun cancellation |
|
Mini illumination |
0.05lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Sensitivity |
3.7V/lux-sec@550nm |
|
Connecting Port Type |
USB2.0 High Speed（Support USB2.0 HS/FS, USB2.0 OTG） |
|
USB Protocol |
USB2.0 HS/FS USB1.1/USB1.0 |
|
Connecting Port Type |
USB2.0 High Speed |
|
OTG Protocol |
USB2.0 OTG |
|
Free Drive Protocol |
USB Video Class (UVC) |
|
AEC |
Support |
|
AWB |
Support |
|
AGC |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
|
Lens Parameter |
CS 5-50mm lens (CS 2.8-12mm, 6-60mm, 4mm, 6mm,8mm…optional) |
|
Night Vision |
Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board |
|
LED Board Power Connector |
Support 2P-2.0mm socket |
|
Power Supply |
USB BUS POWER 4P-2.0mm socket |
|
Operating Voltage |
DC 5V |
|
Working Current |
120mA~220mA |
|
Working Temperature |
-10～70℃ |
|
Storage Temperature |
-20～85℃ |
|
Weight |
About 360-370g |
|
Cable |
Standard 3m (optional 0.3m/0.5m/1/2/5m…optional) |
|
Operating system request |
WinXP/Vista/Win7/Win8 /Win9/Win10/Win11 etc. |
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automaticvending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot lawenforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed videoshooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, microHD surveillance, endoscope, Medical auxiliary equipment, etc.
8MP usb camera with SFV and MFV case, 5-50/2.8-12mm varifocus lens
The inner camera board, specification is same, SFV is smaller than MFV case

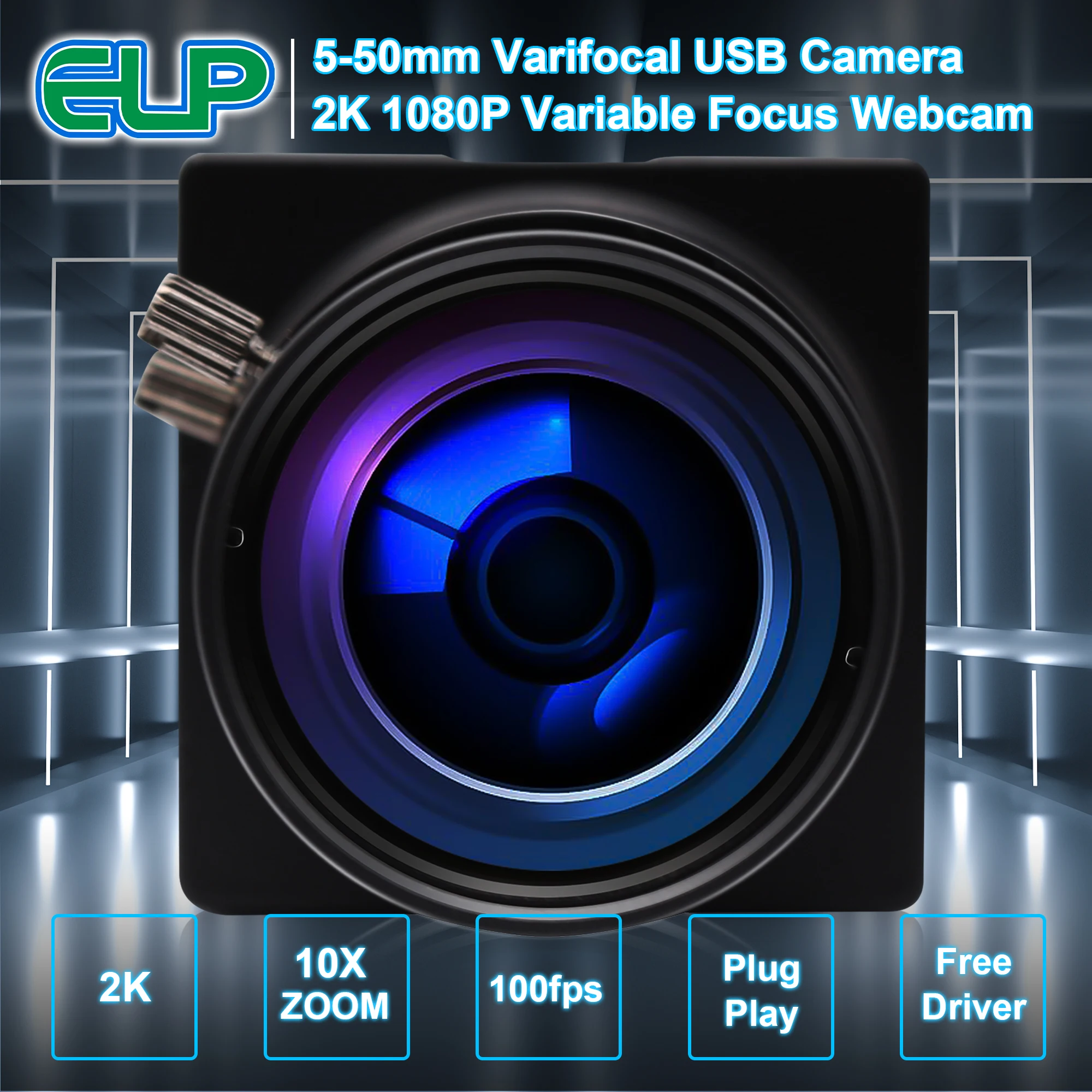

2MP Full HD Resolution 1920×1080
5-50mm lens 10X Zoom
Free driver, UVC Plug & Play
VGA 100FPS, 720P 60FPS, 1080P 30FPS
CMOS OV2710 Sensor
1080P Webcam USB with sharp image

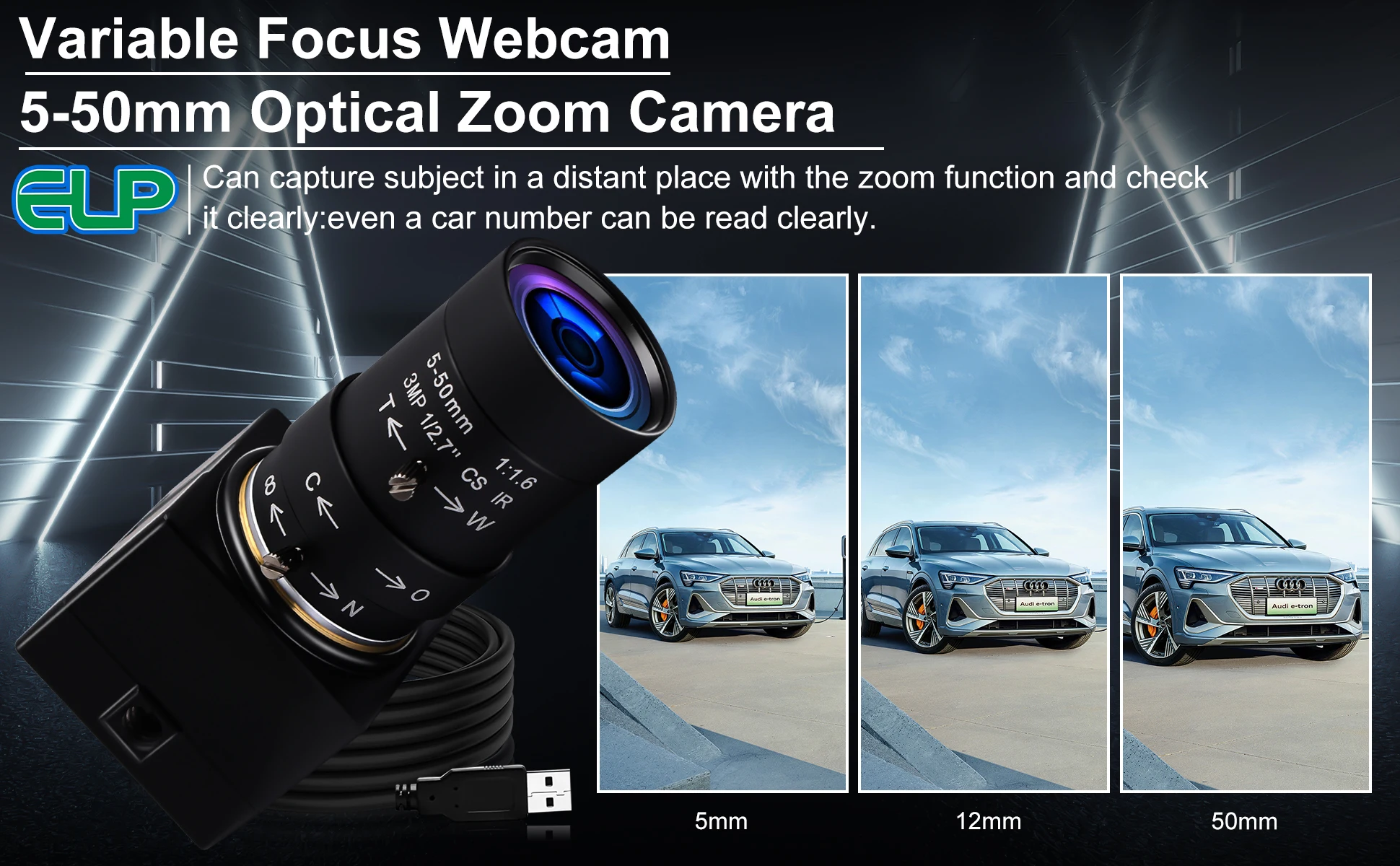

ELP 5-50mm manual focus camera with good zoom in and out:
Focusing is easy,10X manual focus also gives you the perfect amount of sharpness and detail.There are three ‘dials’ on the lens,you can control the zoom,aperture and focus through the rings on the side of the barrel. Highly effective,highly adjustable,designed for is industrial and medical use,to film close ups of say,surgical procedures and send them into virtual learning spaces,would also be perfect for YouTubers who fix electronics works.
High Speed up 100fps:
Light and Protable. Used it to record your wonderful moment.
Effective Pixels:
1920 (H) x 1080 (V) pixels/1280 (H) x 1024 (V) pixels/1280 (H) x 720 (V) pixels
1024 (H) x 768 (V) pixels/800 (H) x 600 (V) pixels/640 (H) x 480 (V) pixels/352(H) x 288 (V) pixels/320 (H) x 240 (V) pixels
High Speed:
1920(H)x1080(V)pixels@30fps
1280x720p@60fps
640×480@100fps
Wide Compatibility:
Support Operation System “WinXP/Vista/WIN7/WIN8/WIN10/WIN11/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above”
Support Application “Skype, Amcap, Quick time, PC Default Webcam Software, ZOOM etc.”
Support living streaming software, Skype, Zoom, Facetime, Youtube…
Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2….

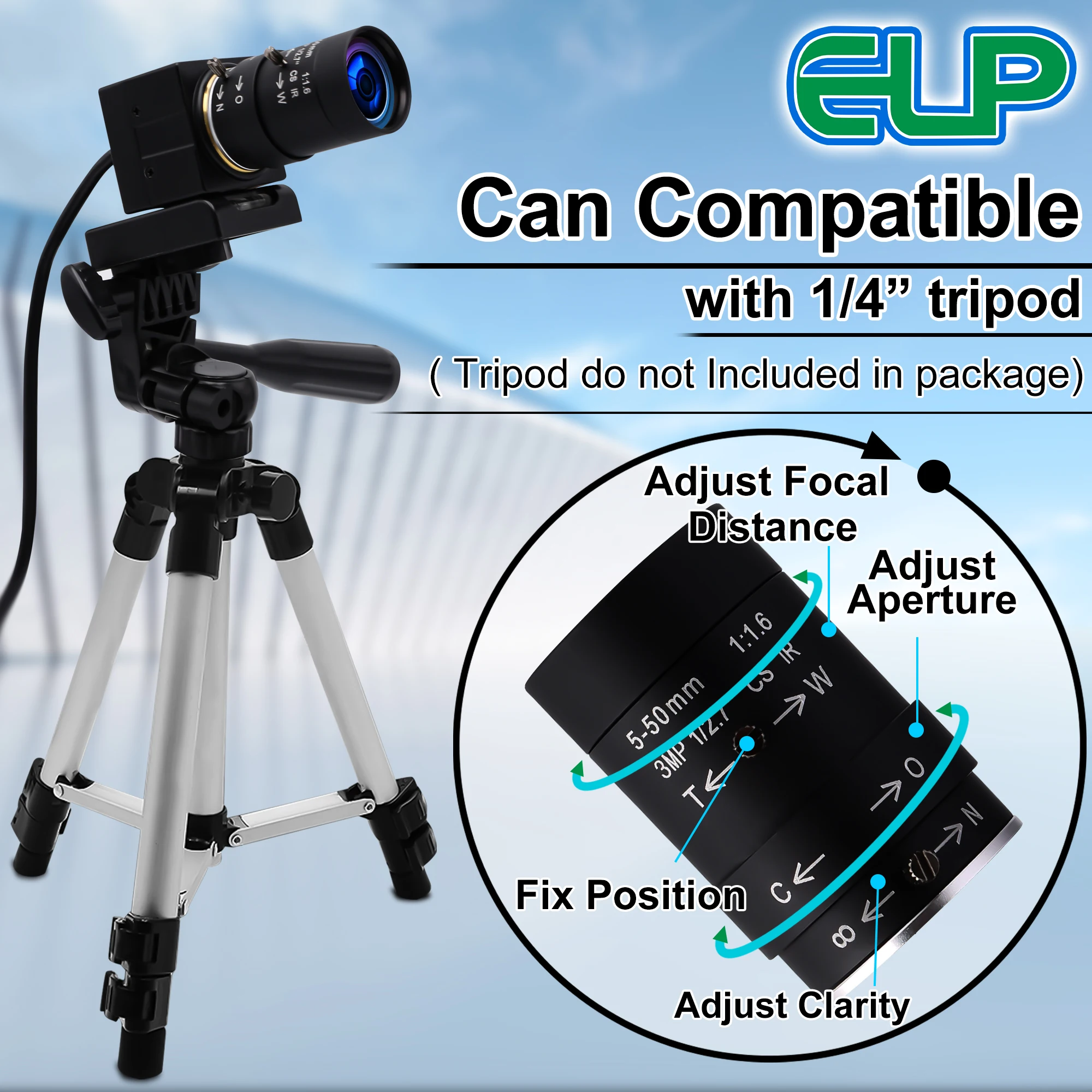

Can compatible with 1/4″ tripod(Tripod do not included in package.)
Standard 1/4″ tripod holes on bottom offer flexible mounting
Simplely rotate Fix position to adjust Clarity or Focus.
Focus,Distance Adjsutable: Good for long distance capturing,good zoom in and out.

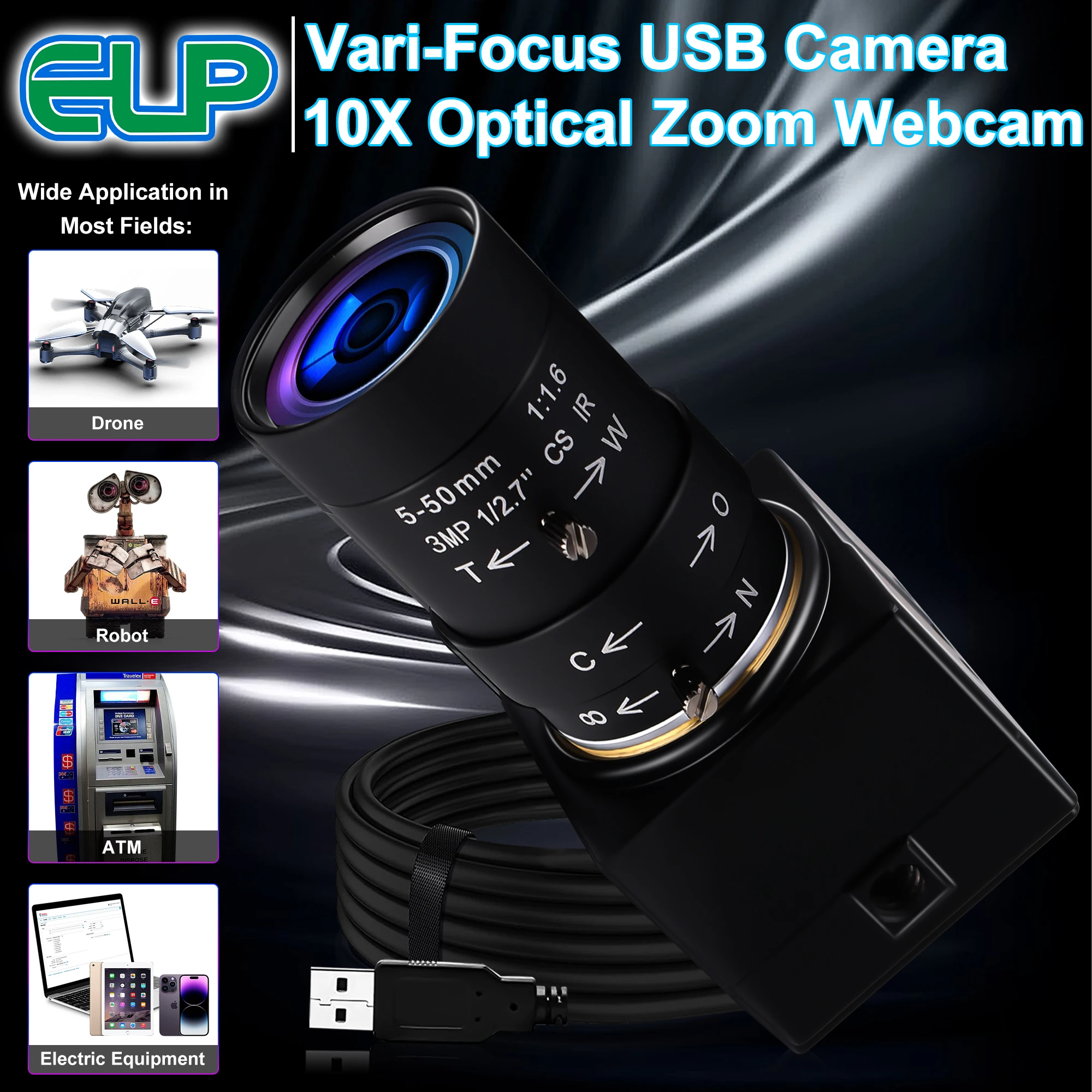

Widely Application:
Compact usb camera for all kinds of machine vision,video conference,home video surveillance system,security camera system,dash cam,monitoring 3D printer,baby pet camera,robot machine vision,bank security,ATM,robot.
ELP usb camera module
Additional information
| Color | MFV(2.8-12), MFV(5-50), SFV(2.8-12), SFV(5-50) |
|---|---|
| Hign-concerned Chemical | None |
| Auto Focus | No |
| Package | Yes |
| Interface Type | USB |
| Image Sensor | CMOS |
| Pixels | 2 Mega |
| Max.resolution | 1920 x 1080 |
| Brand Name | ELP |
| Origin | Mainland China |
| Certification | CE,FCC |
| Sensor | 1/2.7 CMOS OV2710 |
| Interface | USB2.0 |
| High Speed USB2.0 | 120fps in 640×480, 60fps in 1280X720 ,30fps in 1920 x 1080 |
| Driver | Free driver |
| lens | 5-50mm megapixel varifocal lens |
| Operation system | Linux , Android, Windows , Mac OS, SP2, |
| cable | 3m (2/5m optional) |
| Video format | MJPEG or YUY2 |
