ANENG 681/682/683 Pro 6000 Count Rechargable Digital Multimeter Non-contact Voltage Tester Current Meter Electric Measuring Tool
Price range: £25.79 through £36.79 inc. VAT
Description
- Brand Name: ANENG
- ANENG Model: 681/682/683
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- AC Voltage: 0~750V
- Display Type: Digital Display
- DC Voltage: 0~1000V
- AC Current: 0~10A
- Measuring Resistance Range: 0Ohm~60MOhm
- Certification: CE
- DC Current: 0~10A
- Measuring Capacitance Range: 0nF~100mF
- Operating Mode: Auto
- Model Number: ANENG 681/682/683 Digital Multimeter
- Is Smart Device: No
- Measuring Inductance Range: Multimeter
- Dimensions: Multimeter
- Operating Temperature: 0 – 40 ℃
- Choice: yes

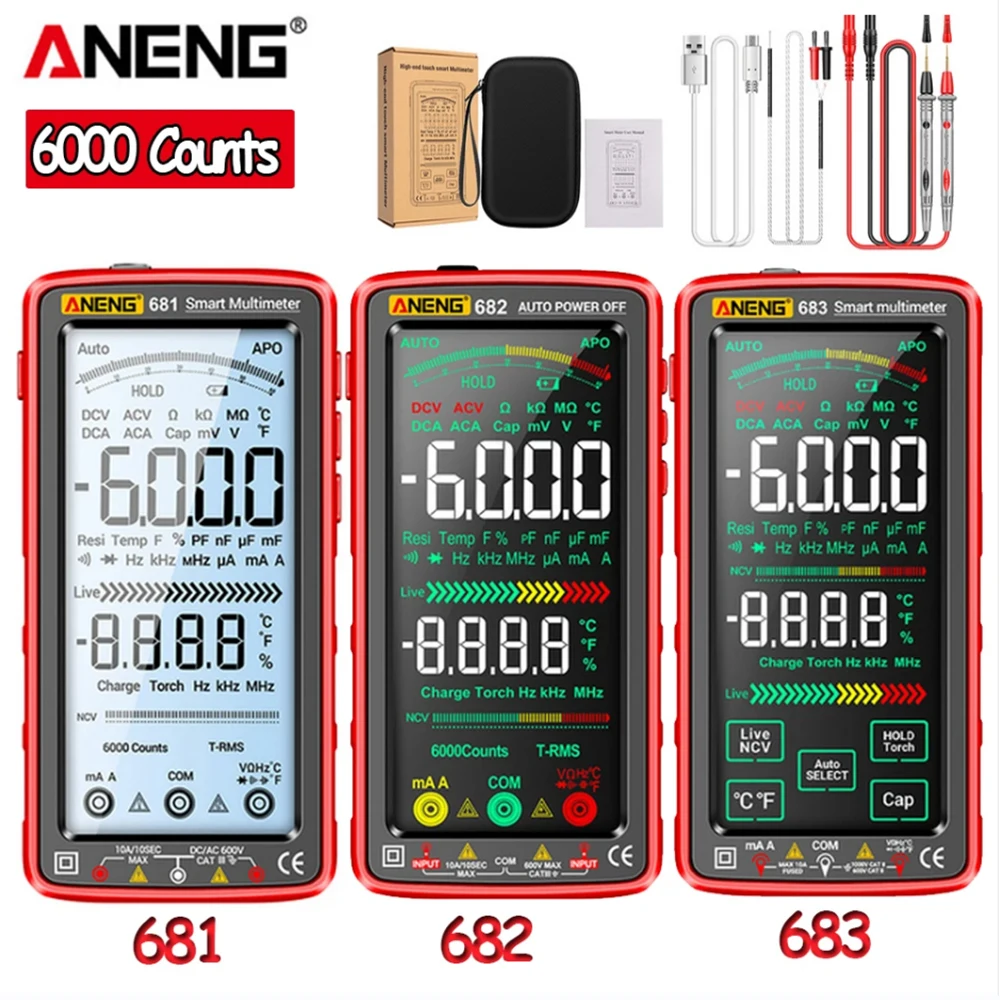

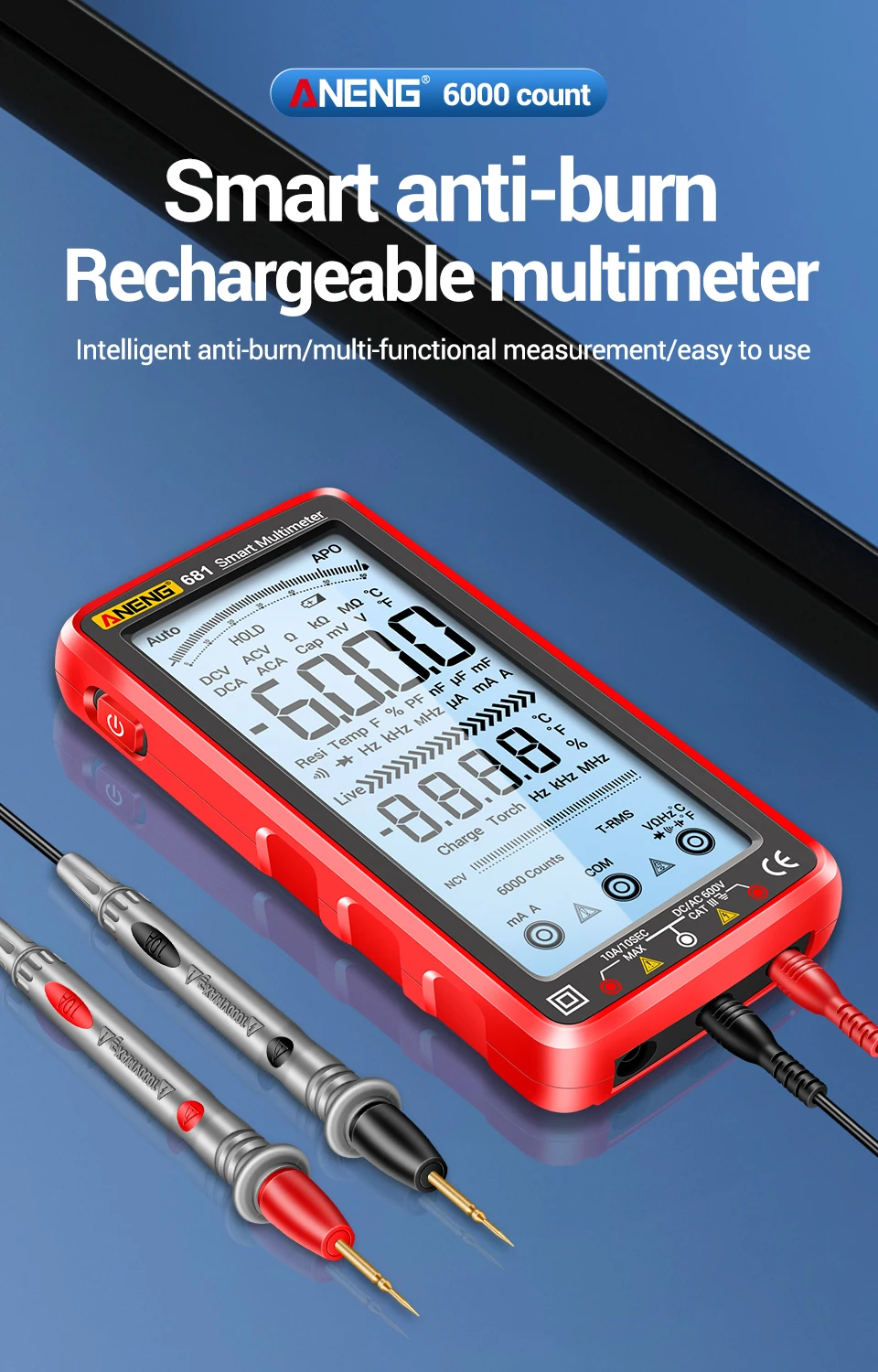

ANENG 681 / 682 / 683 Touch Screen Backlight Sheath Digital Rechargeable Multimeter
6000 Counts Intelligent AC DC Voltage Current Multímetro Test Tools
6000 Counts Intelligent AC DC Voltage Current Multímetro Test Tools
NOTE:
682 is VA color large screen.
683 is a large touch screen.
This product is a 3 5/6 digital multimeter with stable performance and reliable quality. The meter adopts LCD display screen with analog bar display.
Features:
681 is
a large LCD screen.682 is VA color large screen.
683 is a large touch screen.
Description:
This product is a 3 5/6 digital multimeter with stable performance and reliable quality. The meter adopts LCD display screen with analog bar display.
681/682/683 is a 6000 count pocket type true effective value automatic scanning digital meter.
681/682/683 automatically recognizes and measures according to the different input voltage/current/resistance/etc.signals.
681/682/683 has the characteristics of stable performance, high precision and clear reading.
681/682/683 also has additional convenient functions of flashlight test.
681/682/683 is an ideal tool and instrument suitable for factories, teaching and electronic enthusiasts.
Features:
|

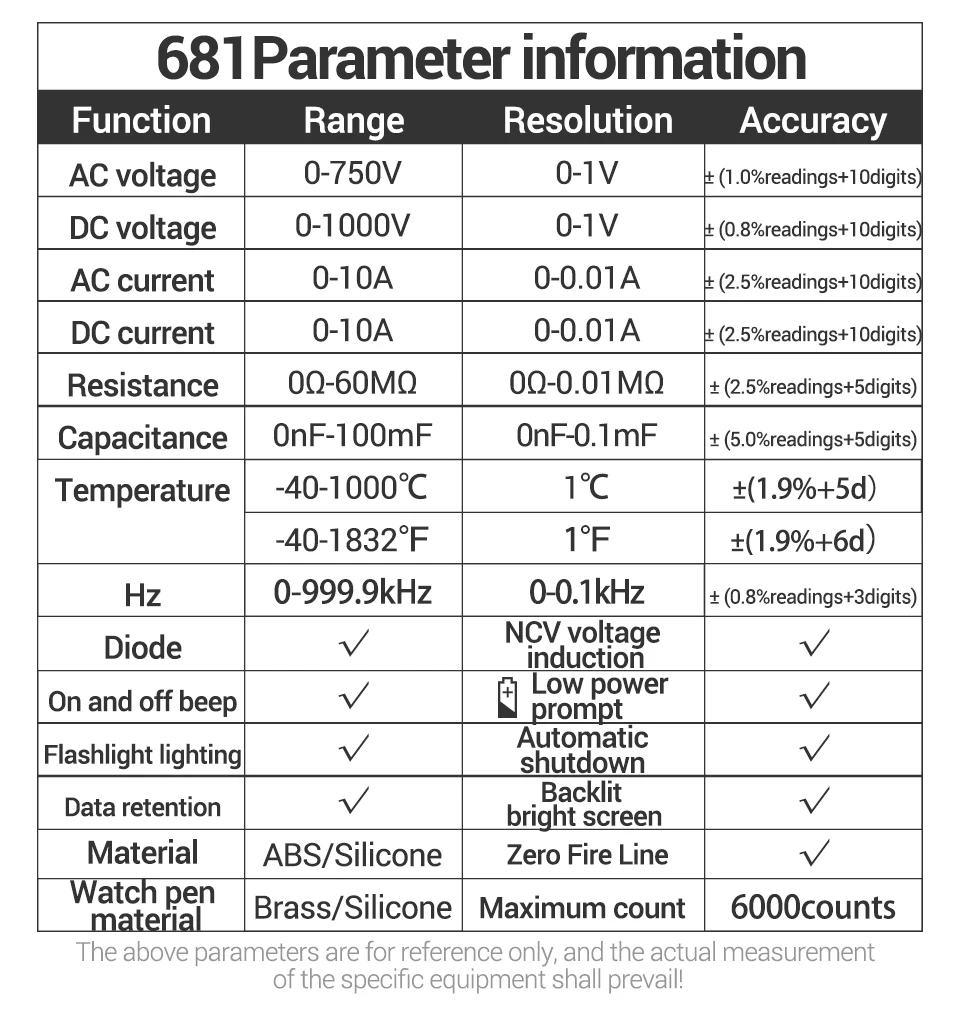

681 |
|||
|
Function |
Range |
Resolution |
Accuracy |
|
DC voltage |
0~1000V |
0~1V |
±(0.8%+10) |
|
AC voltage |
0~750V |
0~1V |
±(1.0%+10) |
|
AC current |
0~10A |
0~0.01A |
±(2.5%+10) |
|
DC current |
0~10A |
0~0.01A |
±(2.5%+10) |
|
Capacitance |
0nF~100mF |
0nF~0.1mF |
±(5.0%+5) |
|
Resistance |
0Ω~60MΩ |
0Ω~0.01MΩ |
±(2.5%+5) |
|
Temperature ℃ |
-40 ℃~1000℃ |
1℃ |
±(1.9%+5d) |
|
Temperature °F |
-40°F~1832 °F |
1°F |
±(1.9%+6d) |
|
Hz |
0-999.9 kHz |
0~0.1 kHz |
±(0.8%+3d) |
|
Diode |
√ |
NCV voltage induction |
√ |
|
On-Off beep |
√ |
Low power prompt |
√ |
|
Auto shut-down |
√ |
Flashlight |
√ |
|
Keep data |
√ |
Backlit bright screen |
√ |
|
Material |
ABS/ Silicone |
Zero Fire |
√ |
|
Watch pen material |
Brass/Silicone |

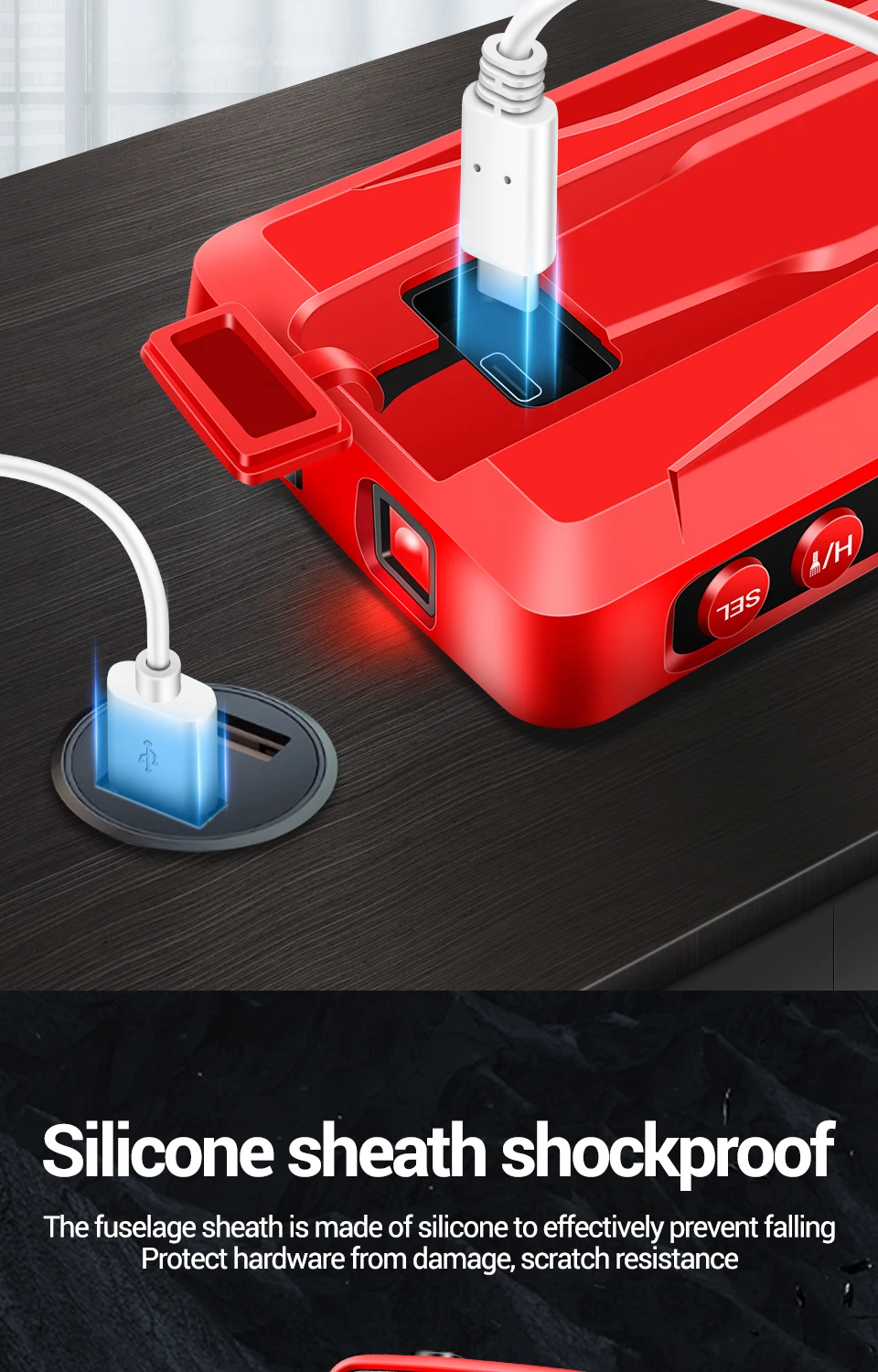

Silicone sheath |
√ |
|
Charging line |
√ |
With a stylus |
√ |
|
Test leads |
according to the choose |
Temperature line |
√ |
|
Model |
681 |
Max Count |
6000 Counts |
|
Product Size |
150.8*74.8*23.8 mm/5.94*2.94*0.98 inch |
||
|
682 |
|||
|
Function |
Range |
Resolving power |
Accuracy |
|
DC voltage |
0V~1000V |
0.001V~1V |
±(0.8%+10) |
|
AC voltage |
0V~750V |
0.001V~1V |
±(1.0%+10) |
|
AC current |
0mA~10A |
1mA~0.01A |
±(2.5%+10) |
|
DC current |
0mA~10A |
1mA~0.01A |
±(2.5%+10) |
|
Capacitance |
0nF~100mF |
0.1nF~0.1mF |
±(5.0%+5) |
|
Resistance |
0~60MΩ |
0.1Ω~0.01MΩ |
±(2.5%+5) |
|
Temperature ℃ |
-40 ℃~1000℃ |
1℃ |
±(1.9%+5d) |
|
Temperature °F |
-40°F~1832 °F |
1°F |
±(1.9%+6d) |
|
Hertz |
√ |
Buzzer |
√ |
|
On-Off |
√ |
Flashlight |
√ |
|
Diode |
√ |
VA reverse display screen |
√ |
|
Keep data |
√ |
Silicone sheath |
√ |
|
Auto shut-down |
√ |
With a stylus |
√ |
|
NCV sensing |
√ |
Temperature line |
√ |
|
Live Zero Fire |
√ |
Charging line |
√ |
|
Model |
682 |
Max Count |
6000 Counts |
|
Texture of material |
ABS/ Silica Gel |
Weight |
About 217g |
|
Product Size |
152*76*25 mm/5.98*2.99*0.98 in |
||
|
683 |
|||
|
Function |
Range |
Resolution |
Accuracy |
|
AC voltage |
0V-750V |
0.001V-1.0V |
±(1.0%+10d) |
|
DC voltage |
0V-1000V |
0.001V-1.0V |
±(0.8%+10d) |
|
AC current |
0mA-10A |
1mA-0.01A |
±(2.5%+10d) |
|
DC current |
0mA-10A |
1mA-0.01A |
±(2.5%+10d) |
|
Resistance |
0Ω-60MΩ |
0.1Ω-0.01MΩ |
±(2.5%+5d) |
|
Capacitance |
0nF-100mF |
0.01nF-0.1mF |
±(5.0%+5d) |
|
Hz |
0Hz-999.9kHz |
0.001Hz-0.1kHz |
±(0.8%+3d) |
|
Temperature |
-40℃-1000°C |
1℃ |
±(1.9%+5d) |
|
-40°F-1832°F |
1°F |
±(1.9%+6d) |
|
|
NCV induction |
√ |
USB charging |
√ |
|
Zero Fire Line |
√ |
Touch screen |
√ |
|
Duty cycle% |
√ |
VA color display |
√ |
|
Buzzer |
√ |
Auto power off |
√ |
|
Diode |
√ |
Data retention |
√ |
|
Material |
ABS/Silicone |
Flashlight lighting |
√ |
|
Weight |
About 217g |
Silicone sheath |
√ |
|
Maximum count |
6000 Counts |
Low battery indication |
√ |

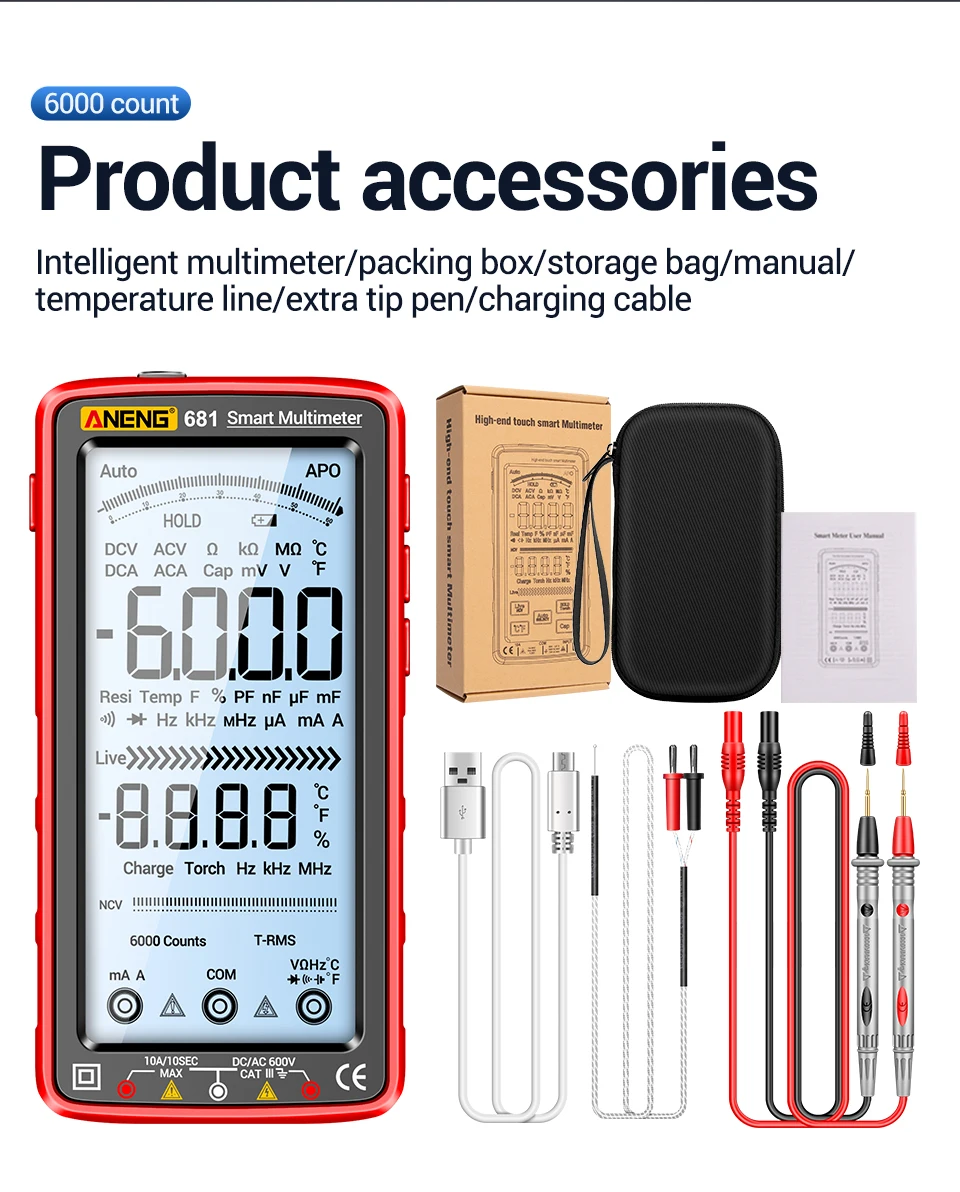

Packing List:
1 * Digital Multimeter
1* Temperature line
1* Storage bag
1 * English user Manual
1 * Packing box
1 * Charging Cable
1 * Test leads (according to the choose)
Additional information
| Color | 681 Black pro, 681 red pro, 682 black, 682 black pro, 682 red, 682 red pro, 683 Black, 683 Black Pro, 683 Red, 683 Red Pro |
|---|---|
| Brand Name | ANENG |
| ANENG Model | 681/682/683 |
| Origin | Mainland China |
| Hign-concerned Chemical | None |
| DIY Supplies | Electrical |
| AC Voltage | 0~750V |
| Display Type | Digital Display |
| DC Voltage | 0~1000V |
| AC Current | 0~10A |
| Measuring Resistance Range | 0Ohm~60MOhm |
| Certification | CE |
| DC Current | 0~10A |
| Measuring Capacitance Range | 0nF~100mF |
| Operating Mode | Auto |
| Model Number | ANENG 681/682/683 Digital Multimeter |
| Is Smart Device | No |
| Measuring Inductance Range | Multimeter |
| Dimensions | Multimeter |
| Operating Temperature | 0 – 40 ℃ |
| Choice | yes |
