ELP 16MP Autofocus USB Camera Module with 68 degree Mini Size Lens Video Lightburn Camera Industrial Embedded Webcam Board

Ailipu Technology Co.,Ltd, who have 17 years history, is a professional manufacturer of surveillance system .

Ailipu has its own brand ELP, which already well know in security surveillance system. With its own unique R&D team as the basic, oriented by dedicated sales team,

ELP already developed into a prefessional video products company integrate with developing, production, sales and also service all together.

ELP is developing its own special USB Cameras for industrial vision. Recently, we present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel, 5megapixel autofocus,  8megapixel to 13megapixel which already used in all kinds of industrial system.

ELP can also OEM or customize products specially by customers’ requirements. We always believe”Together everybody achives more!”, and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.

Package include:

1) 1PC 16mp usb camera

2) 1PC 3m usb cable  ( 2m/5m cable optional)

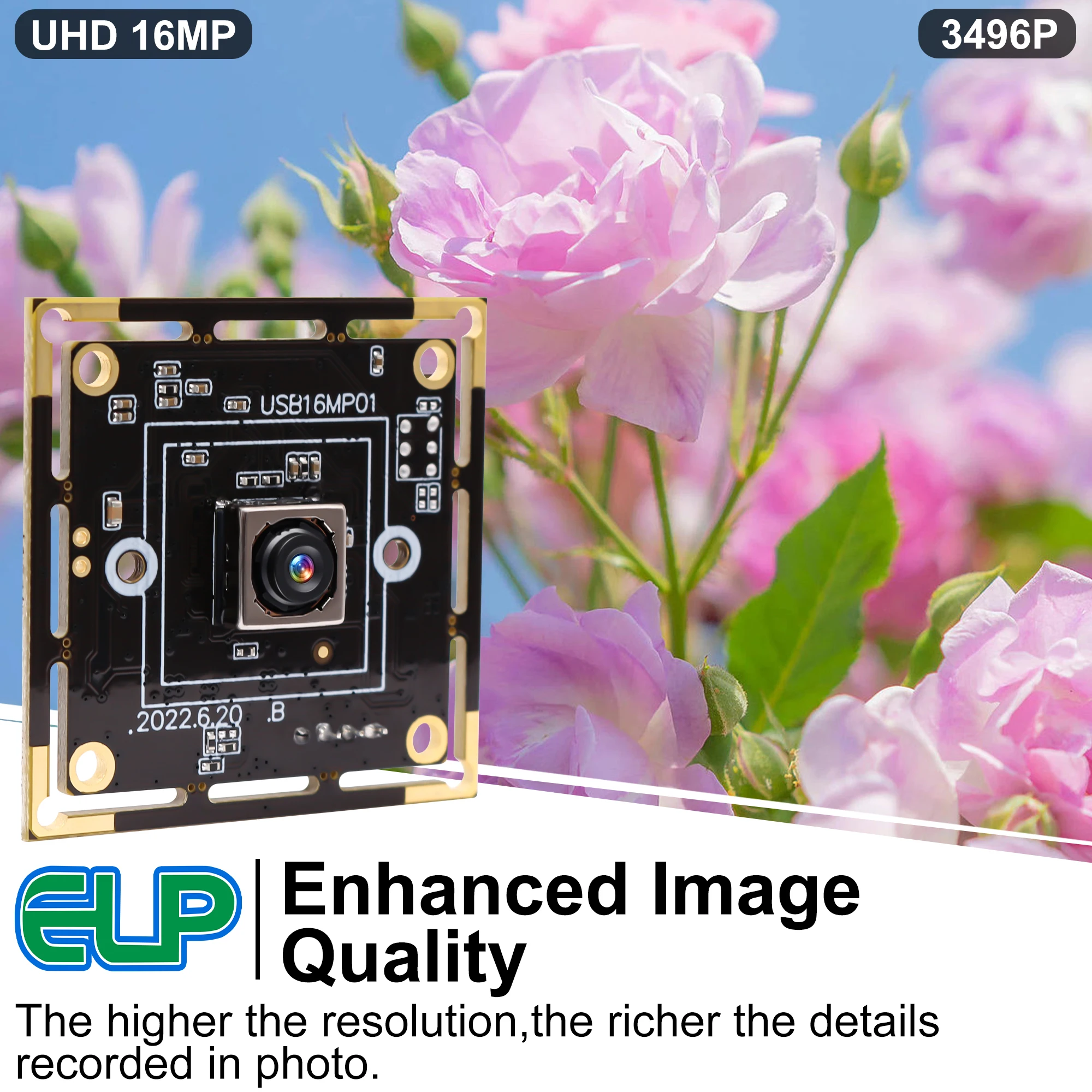

1) More than HD: This camera adopts an 16MP IMX298 sensor for sharp image and accurate color reproduction, Max. still resolution 4656 x 3496 .

2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial

3) This camera module has a 68° M12 Lens, transmitting the most realistic image effect.

4)Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera

5) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.

6) Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision

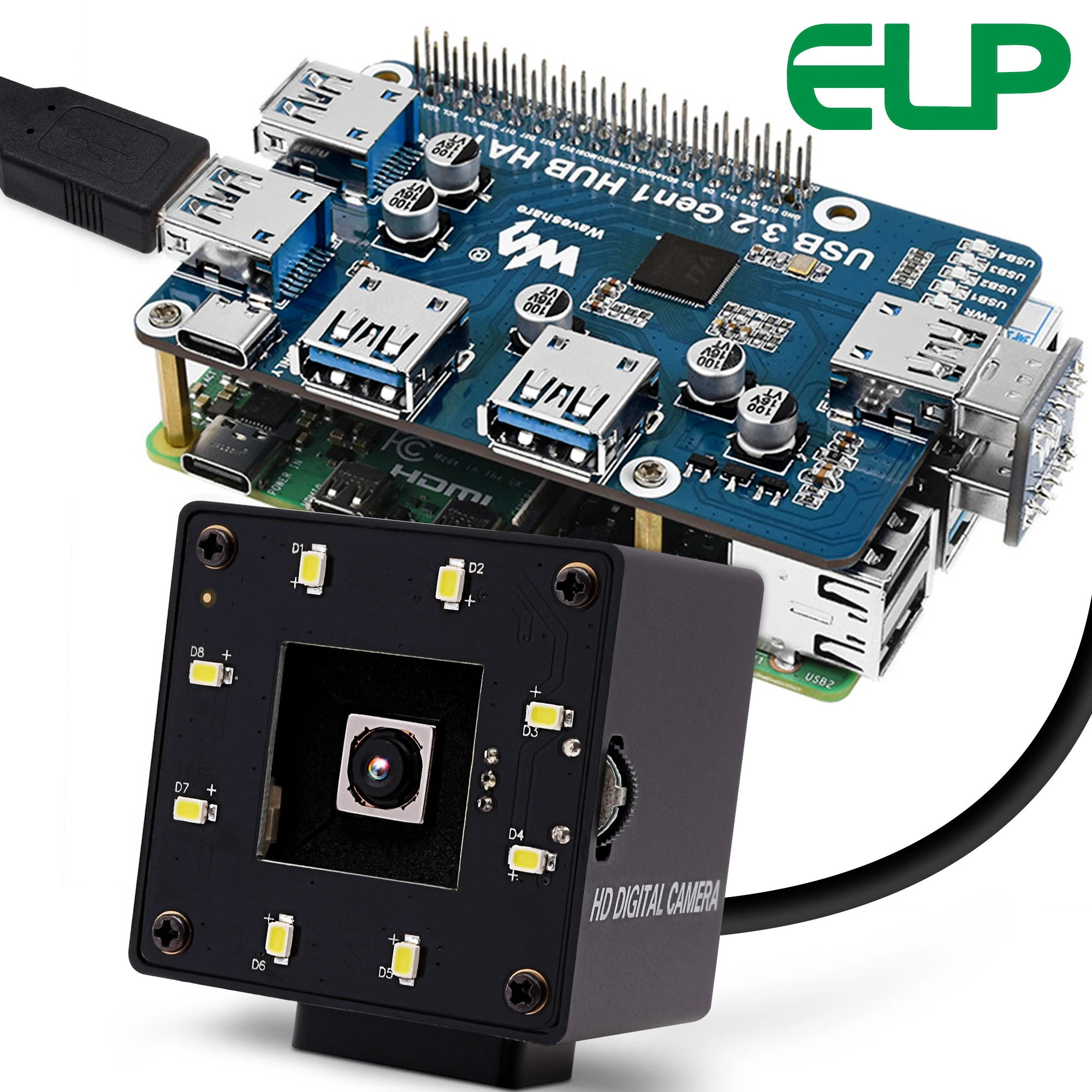

7) 8pcs White Leds, For Day and Night

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

ELP-USB16MP01-AF68

16MP Auto focus USB Camera

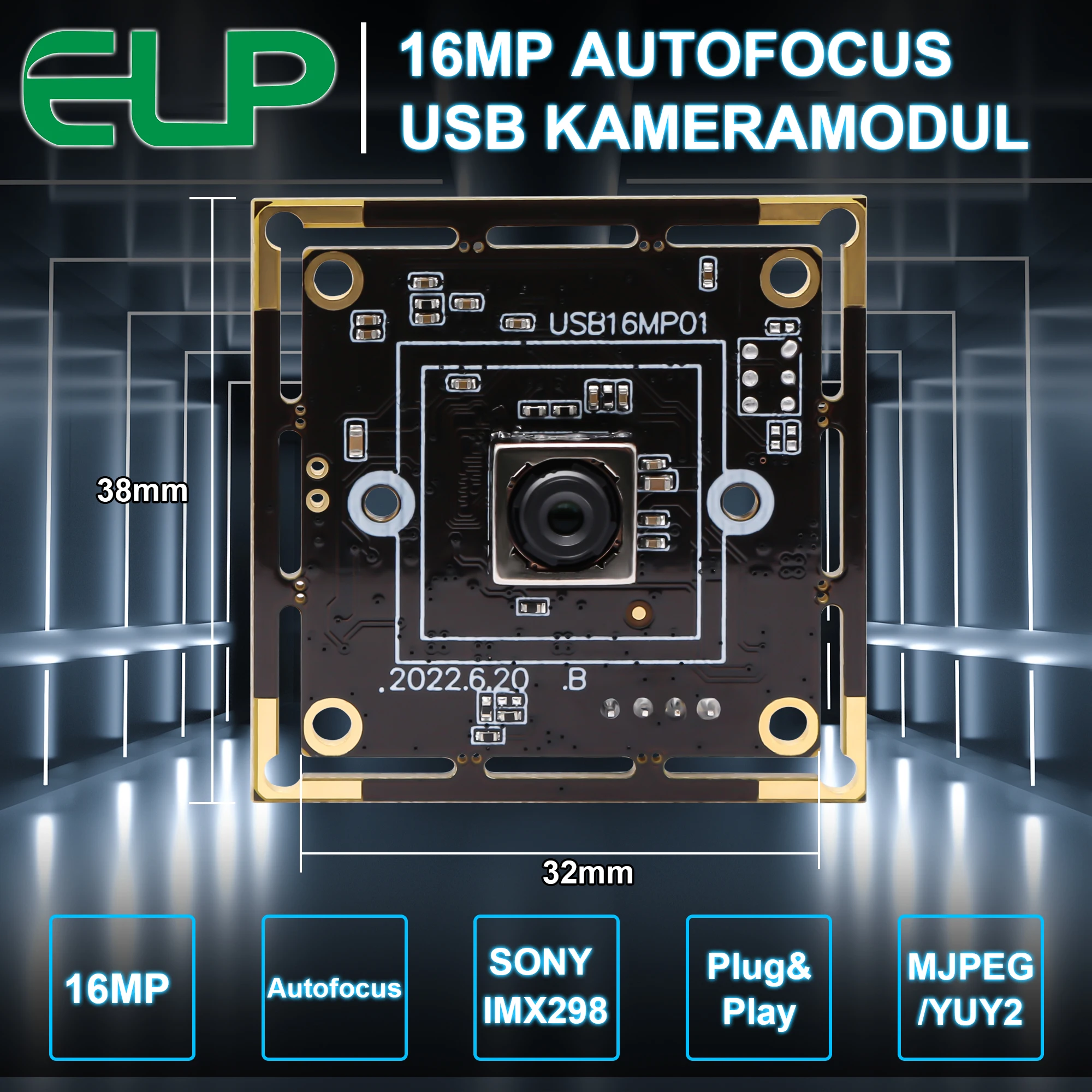

Mini 38*38mm Board

16MP Ultra Clear, Max Resolution: 4656(H) X 3496(V) 16 Megapixel, super Image reality, real color reproduction, show your best in every video call.

Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam…

Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi, Jetson Nano…

Multiple Application:

Highly recommended for a customs scan,scan documents,scan passports,3D scanner,scan photographs,scan drawings,scan examples of textiles,scan advertisement and any vision applications which demand high resolution

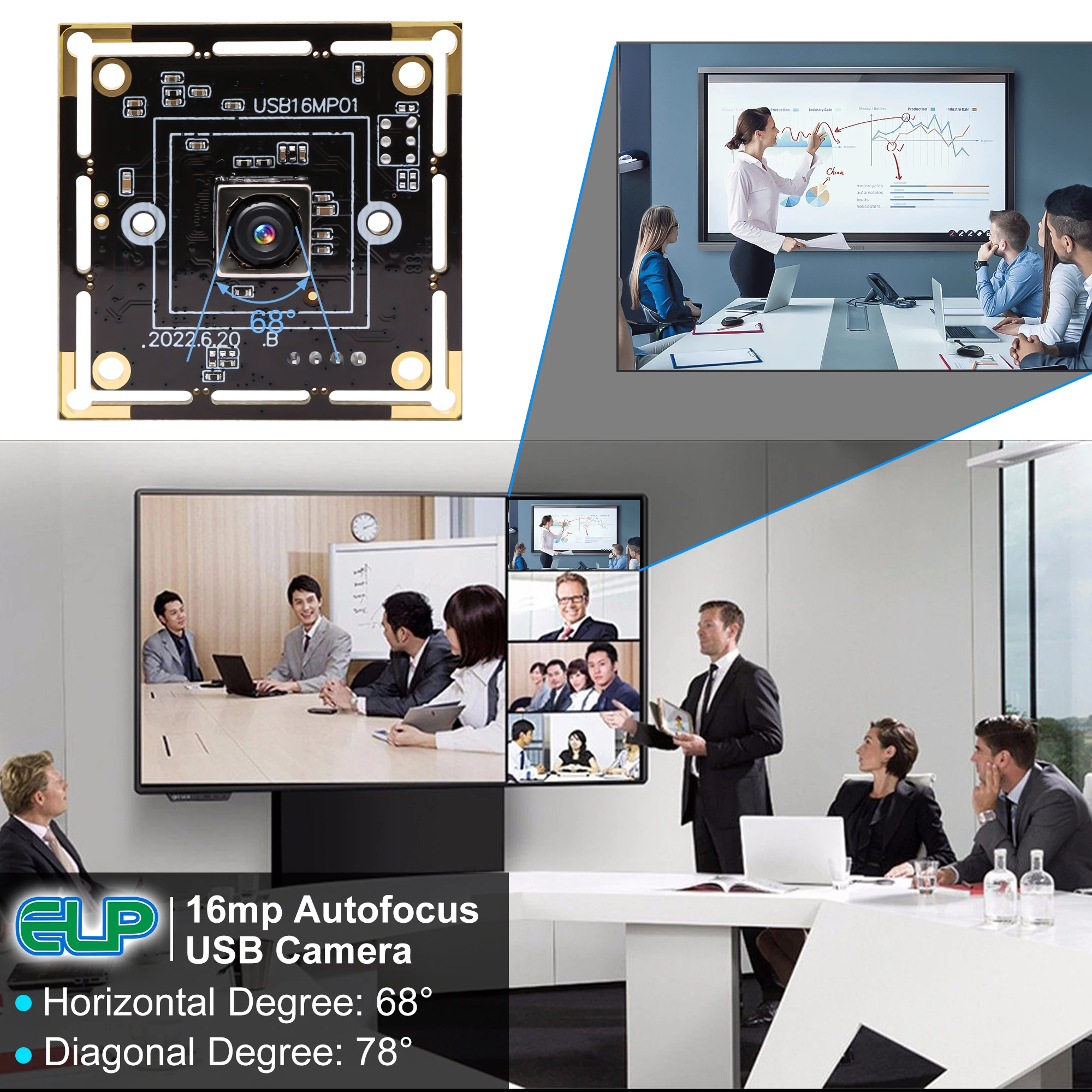

Mini 68degree no distortion autofocus lens:

Viewing Range:

Horizontal Angle:68°

Diagonal Angle:78°

ELP-USB16MP01-KAF68

ELP-USB16MP01-KAF68W

16MP USB Camera Effect
