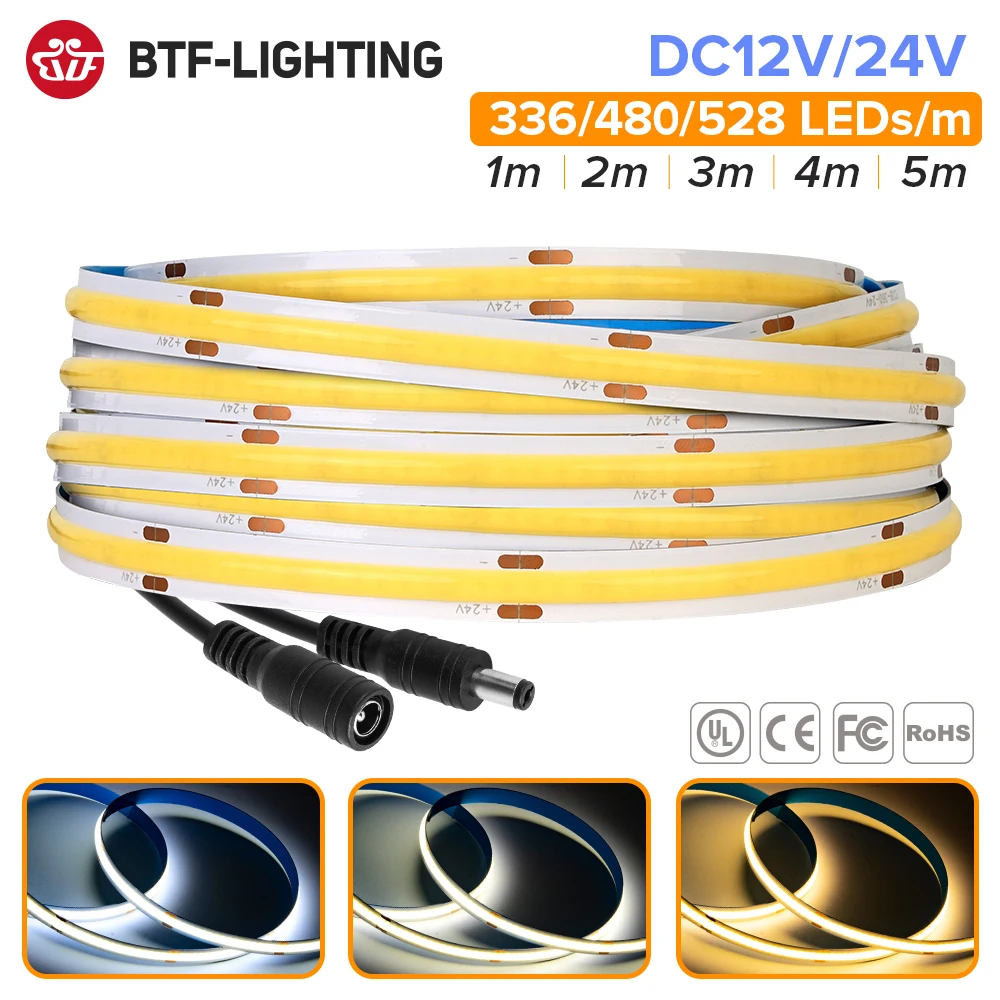

FCOB LED Strip Light 336 480 528 LED High Density Flexible FOB COB Led Light RA90 Warm Nature Cool White Linear Dimmable 12V 24V
Price range: £8.79 through £28.79 inc. VAT
Description
- Luminous Flux: 2000-82000
- Hign-concerned Chemical: None
- Is Batteries Included: No
- Model Number: BTF-FCOB DIM LED STRIP
- LED Chip Model: RA90
- Average Life (hrs): 80000
- Certification: ce,FCC,ROHS,UL
- Power Source: DC
- Origin: Mainland China
- Strip type: COB
- Item Type: Strip
- Brand Name: BTF-LIGHTING
- Voltage: DC12V / DC24V
- LEDs Number/M: 336 / 480 / 528
- Waterproof: No
- Color Temp(K): 3000K, 4000K, 6000K
- Occasion: bedroom
- FPCB Width: 336-8mm / 480-8mm / 528-10mm
- Optional Length: 0.5m/1m/2m/3m/4m/5m/10m
- Theoretical Power: 336-9W/M, 480-9W/M, 528m-14W/M
- Cutting Length for 336: DC12V- every 35.5mm, DC24V-every 71.5mm
- Cutting Length for 480: DC12V- every 25mm, DC24V-every 50mm
- Cutting Length for 528: DC12V- every 22.5mm, DC24V-every 45.5mm
- Feature 1: Without Dark Area
- Feature 2: Super Flexible
- Feature 3: Linear Dimmable
- Feature 4: Super Power Saving
- Occasion 1: Bedroom or Cabinet
- Occasion 2: Hotel or Office Building
- Occasion 3: Shopping Mall
- Occasion 4: Home Decoration
- Attention: Must work with DC12V or DC24V Power
- Package Including: Only LED Lights ( No power and LED controller )
Please Pay Attention:
1. The Price is Only LED Strip, Not Included Power Supply and LED Controller and Connectors.
2. This FCOB Must Use DC12V or DC24V Power Supply.
3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It’s Not a Quality Problem.
4. This FCOB LED Strip Can Be Cut at Each Shear Point To Create Custom Lengths, Do Not Bend LED Strip Sharply.
5. The 2 Pin DC Connectors of LED Strip Included: Red: VCC, Black: GND. You can cut the DC connector to connect the 2 pin wire to the power supply.
6. The LED Strip Has Adhesive Tape On The Back of PCB. Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.
7. Longer LED Strip Runs, Please Add More Power to 2 Pin Wire of Both Ends To Reduce Voltage Drop.
8. If the length of the FCOB light you choose is 0.5m/1m/2m, it will come with a DC female plug, No DC male plug at the other ends, please know.
9. If you choose 10 meters, you will get 1 roll of 10 meters instead of 2 rolls of 5 meters. 10 meters of fcob light strip needs more energy, so please buy high power adapter, thank you!
How to Choose Power Supply?
First, Calculated The Whole LED Strip Lights Watts.
Theoretical Power, 336-9W/M, 480-9W/M, 528-14W/M, If You Buy 5m 528LEDs/m, So 14W/M*5m=70W.
Then, Choose the Right Power Supply.
If This LED Strip is Work with DC12V Power, So 70W / 12V = 5.8A ( At Least 6A or more ).
FCOB LED Strip Light 336 480 528 LED High Density Flexible FOB COB Led Light RA90 Warm Nature Cool White Linear Dimmable 12V 24V ( not waterproof IP30 ）
This link LED light strip is not waterproof, if you need a waterproof LED light strip, please click on the picture above.

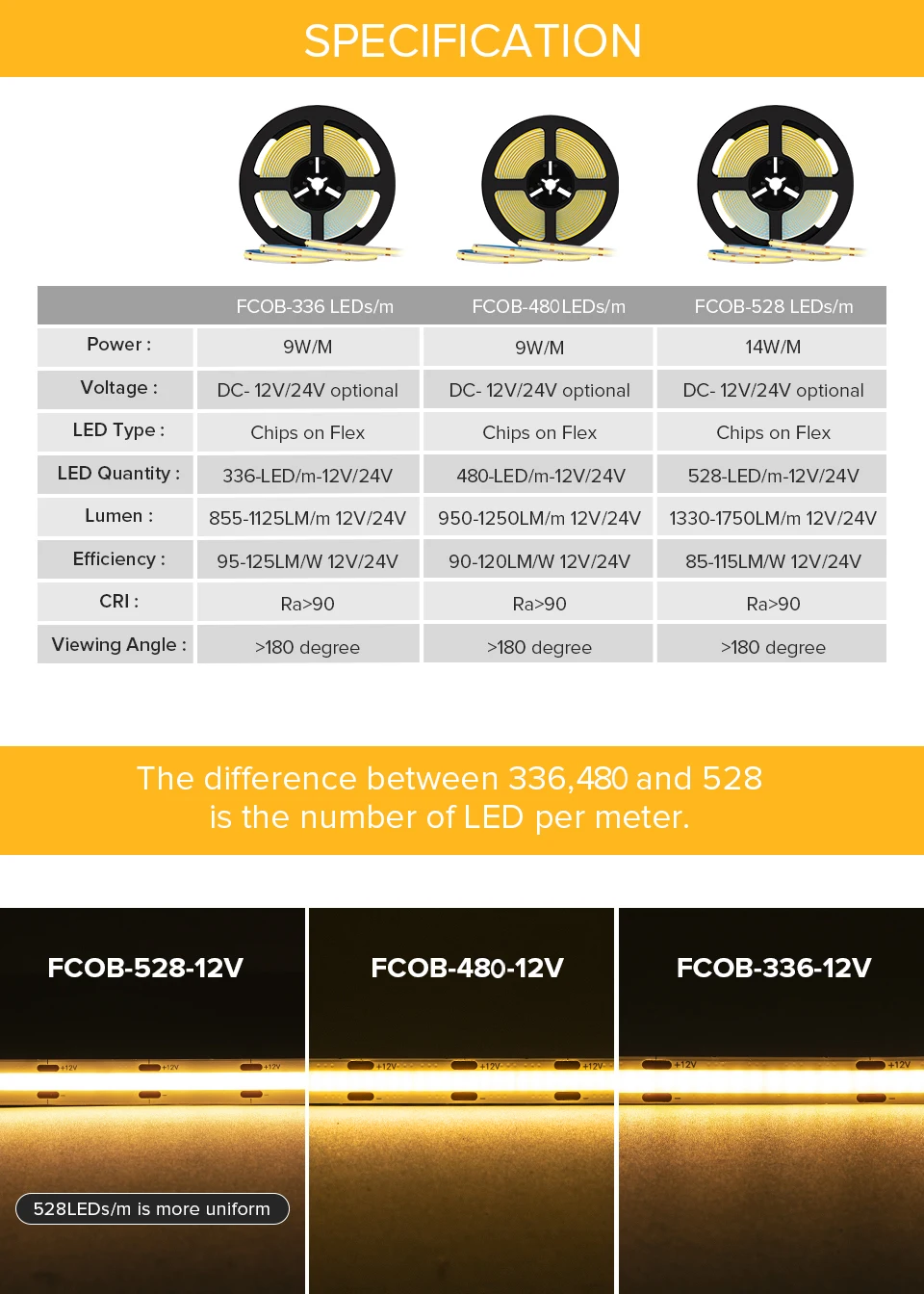

Specification:
Input Voltage: DC12V / 24V
Theoretical Wattage : 336-9W/M, 480-9W/M, 528m-14W/M
FPCB width: 336leds/m-8mm, 480leds/m-8mm, 528leds/m-10mm
LED quantity: 336/480/528 LEDs/M
Cutting length: 336leds/m, DC12V- every 35.5mm, DC24V-every 71.5mm. 480leds/m, DC12V- every 25mm, DC24V-every 50mm. 528leds/m, DC12V- every 22.5mm, DC24V-every 45.5mm.
Color temperature: Warm White(3000K), Nature White(4000K), Cool White(6000K).
Color Rendering Index: Ra＞90
Operation temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
View angle: 180°
Package:
1× FCOB LED strip（ power supply, DIM led controller and connectors are not included ）

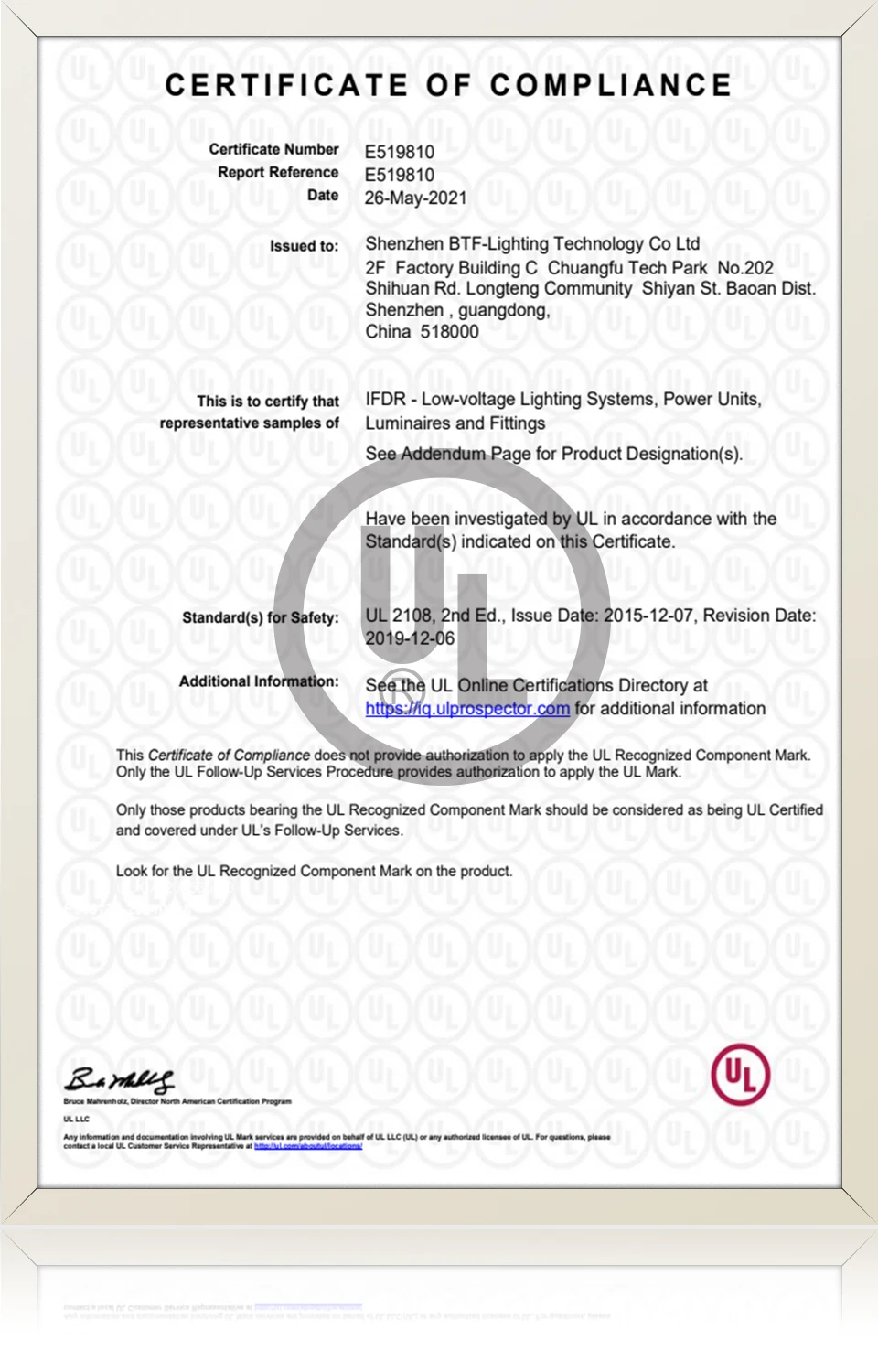

UL CERTIFICATE OF COMPLIANCE
Additional information
| Emitting Color | 3000K Warm White, 4000K Natural White, 6000K Cool White |
|---|---|
| Luminous Flux | 2000-82000 |
| Hign-concerned Chemical | None |
| Is Batteries Included | No |
| Model Number | BTF-FCOB DIM LED STRIP |
| LED Chip Model | RA90 |
| Average Life (hrs) | 80000 |
| Certification | ce,FCC,ROHS,UL |
| Power Source | DC |
| Origin | Mainland China |
| Strip type | COB |
| Item Type | Strip |
| Brand Name | BTF-LIGHTING |
| Voltage | DC12V / DC24V |
| LEDs Number/M | 336 / 480 / 528 |
| Waterproof | No |
| Color Temp(K) | 3000K, 4000K, 6000K |
| Occasion | bedroom |
| FPCB Width | 336-8mm / 480-8mm / 528-10mm |
| Optional Length | 0.5m/1m/2m/3m/4m/5m/10m |
| Theoretical Power | 336-9W/M, 480-9W/M, 528m-14W/M |
| Cutting Length for 336 | DC12V- every 35.5mm, DC24V-every 71.5mm |
| Cutting Length for 480 | DC12V- every 25mm, DC24V-every 50mm |
| Cutting Length for 528 | DC12V- every 22.5mm, DC24V-every 45.5mm |
| Feature 1 | Without Dark Area |
| Feature 2 | Super Flexible |
| Feature 3 | Linear Dimmable |
| Feature 4 | Super Power Saving |
| Occasion 1 | Bedroom or Cabinet |
| Occasion 2 | Hotel or Office Building |
| Occasion 3 | Shopping Mall |
| Occasion 4 | Home Decoration |
| Attention | Must work with DC12V or DC24V Power |
| Package Including | Only LED Lights ( No power and LED controller ) |
| Wattage | 12v 336 leds, 12v 480 leds, 12v 528 leds, 24v 336 leds, 24v 480 leds, 24v 528 leds |
| Length | 1m, 2m, 3m, 5m, 0.5m, 10m, 4m |
